Brief Introduction

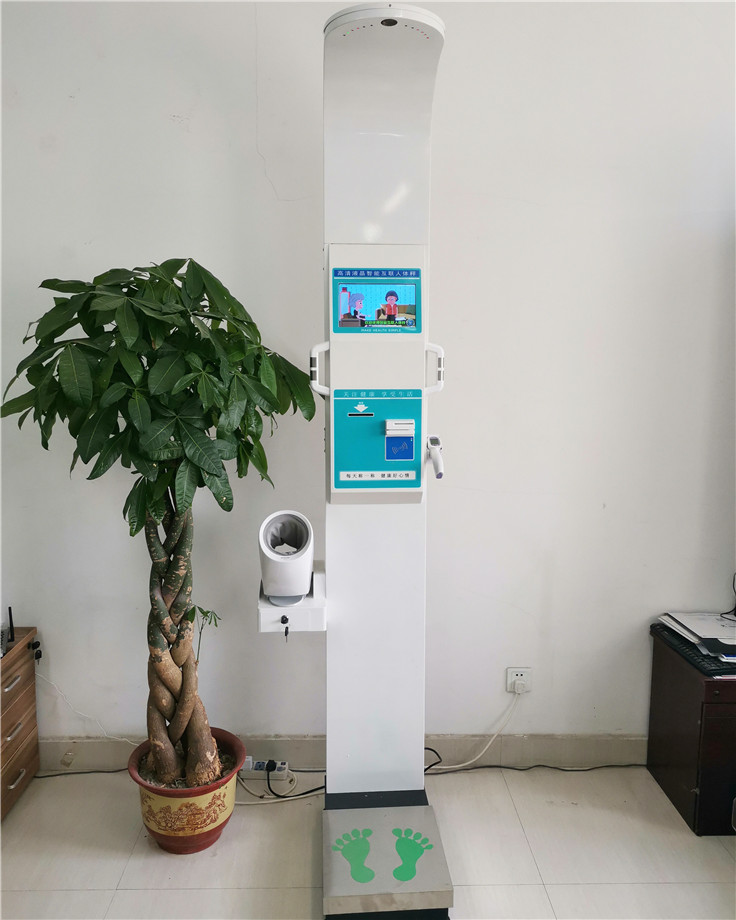

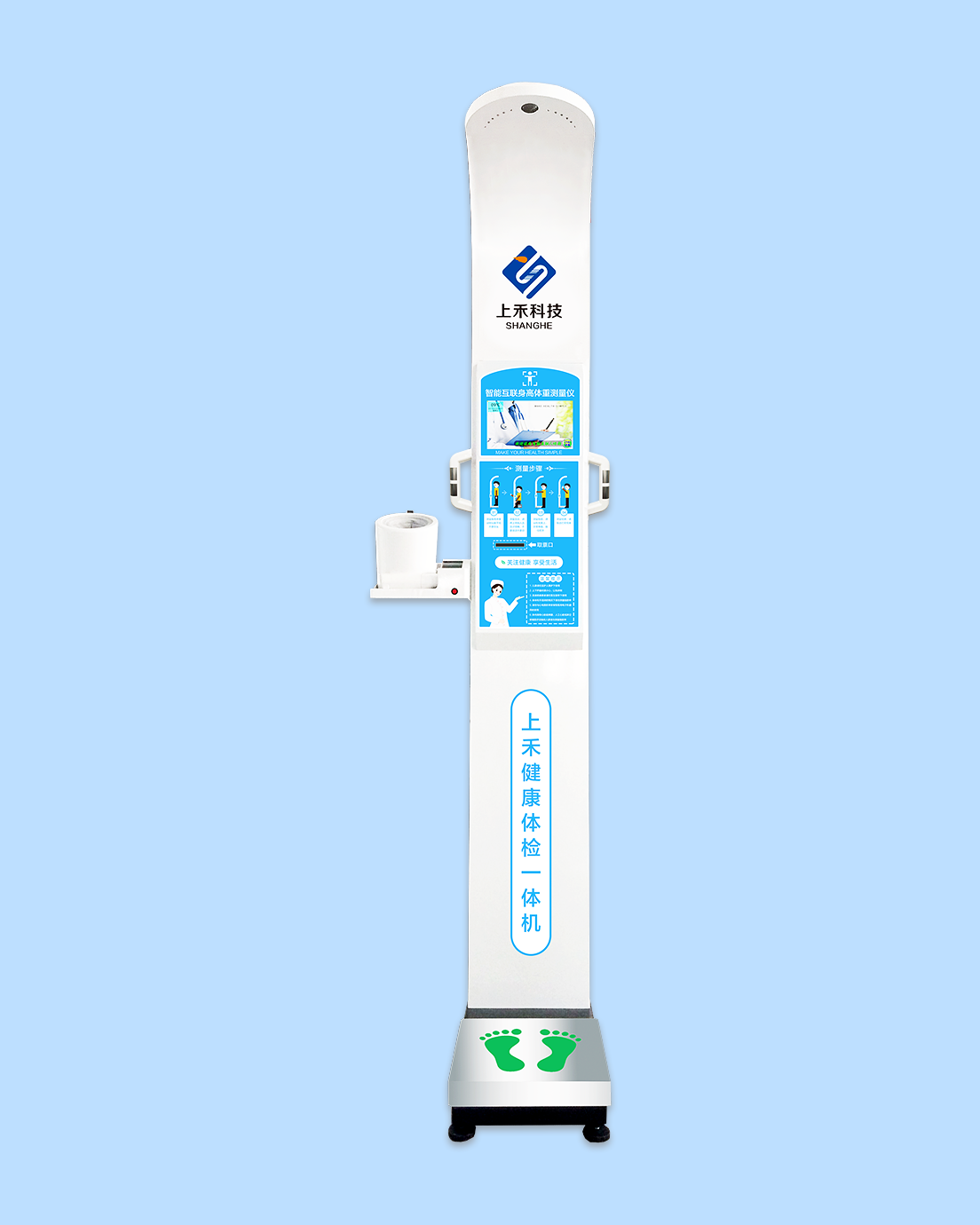

SH-10XD Health Check Kiosk is a tool for health screening, which includes height, weight, BMI, body fat analysis, muscle, blood pressure, pulse measurement ,temperature, blood oxygen,  it is all-in-one service with fast measurement.If medical practitioners try to manage his/her patients body composition and store the index ,SH-10XD offers all .

Function:
-Height & weight measurement

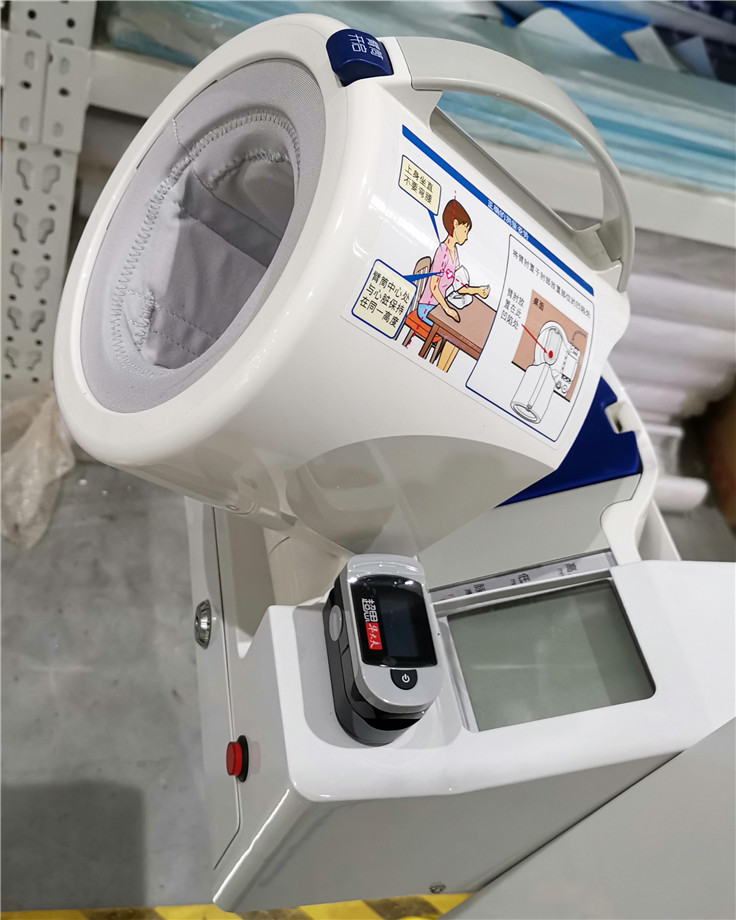

-Blood pressure
-Calculation of BMI
-Measuring body fat
-TMB (Basal Metabolic Rate)
-Body composition (water, protein and mineral)
-blood oxygen  measurement (Optional)
-Body temperature measurement (Optional)
-10.1 inch display screen can play ads
-Date can be stored in the machine
-By WiFi to transfer the date to Internet.



Unique selling point

Screen 8 parameters in 2 mins (Height, Weight, BMI, Blood pressure,BMR,Temperature, SPO2, NIBP , Pulse rate，etc）
10.1″ LCD for better viewing
Touch screen for easy go operation
Thermal printer
User Friendly & Aesthetic Look
Ticket with results of all measurements and recommended values
Possibility of customizing the ticket with your logo
Personalized advertising screen with the logo of your pharmacy or your business
Promotional poster

Applications

Departments and units such as hospitals, pharmacies, clinics, schools, shopping malls/supermarkets, public security systems, gyms, medical centers and bathing centers etc.

Technical data

Specification	SH-10XD
Height Measurement Mode	Ultrasonic probe for height measurement (American original probe which can realize temperature difference compensation)
Weight Measurement Mode	Precise balanced sendor for weight measurement
Body Type	International general physique index(BMI)
Body Fat Measurement Mode	Bioelectricity impedance principle
Display Mode	10.1' LCD screen
Measurement Range	Height:50-210cm              Weight:5-500kg          Fat:5-50%        Blood pressure:0-299mmhg(0-39.9kpa)      Pulse rate:40-180 heartbeat/minute
Precision	Height:±0.1cm       Weight:±0.1kg       Fat:±0.5%    Blood pressure:within±4mmhg(±0.5kkpa)    Pulse rate:within reading ±5%
Printing Mode	Thermal printer, automatic cutting paper
Voice Instruction	Yes
Data Output Format	RS-232, Wifi, Bluetooth, 3G/4G,etc.
Power Supply Voltage	AC100V-240V,50Hz-60Hz
Average Function Consumption	≤15w
Electric Shock Protection	I type B model equipment
Shape Design	Conform to human engineering
Scale Net Weight	45kg
Shape Size:	1790*385*220; 695*410*475;(L*W*H mm)
Useful Life	Over 5 years
Origin	Henan Zhengzhou China
Attachment	Operating manual, power supply line, thermal printing paper and so on
Optional Function	thermometer, blood oxygen meter, blood glucose meter, etc.


About Us：

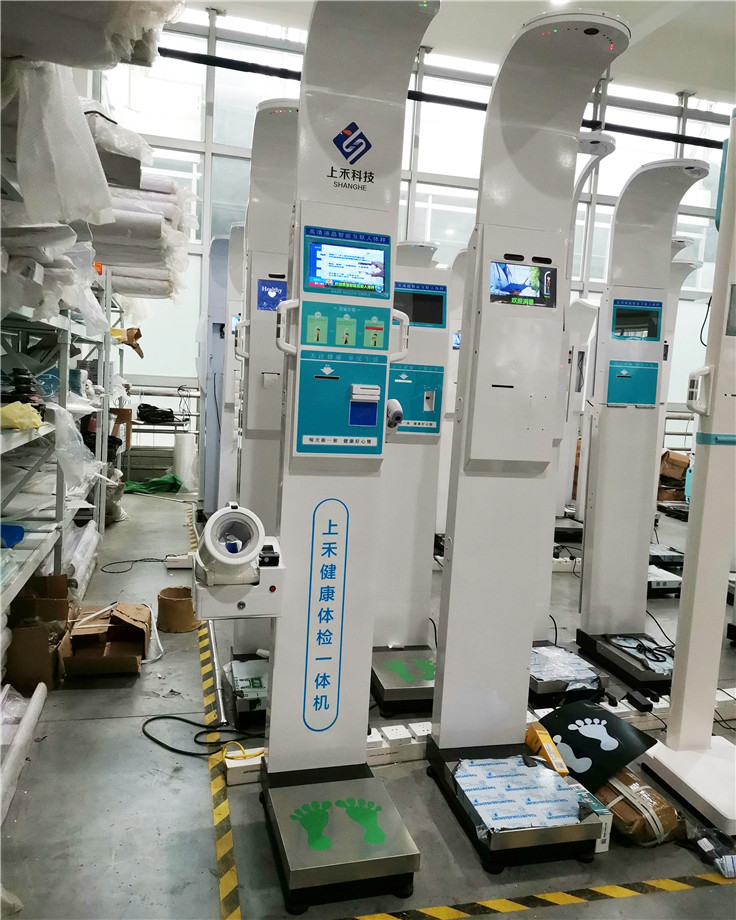

We manufacture people weighing-machines. Our Body Weigh scales  are ideal products or pharmacies willing to offer a unique service to their customer. With a wide range, good quality, reasonable prices and stylish designs, Thousands of our professional machines have been sold worldwide and can be seen in best shopping centers, pharmacies or airports.

Our Service
1.Professional inspector check scales quality before delivery.

2.Provide merry go round best after-sales service until you satisfied with our product.

3.We provide scales direction of installation to help you install the scales .

4.Provide scales experienced instruction of how to operate the equipment and how to manage.

5.The global quality of this product is guaranteed for one year, lifetime technology and after-sales service.

6.Provide software, hardware system customization services.
