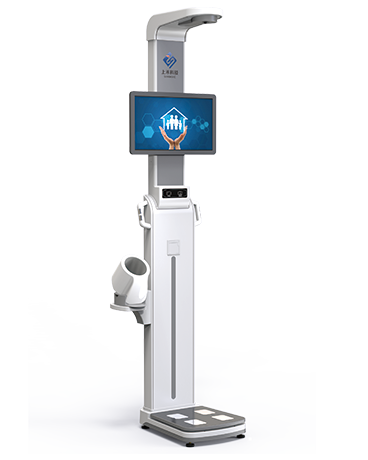

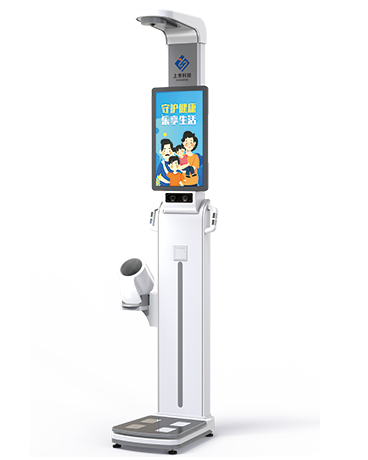

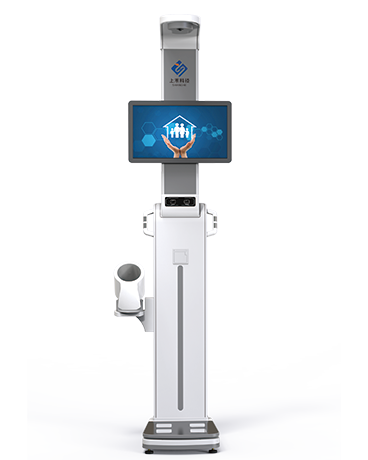

The main components of the machine are as below:
Ultrasonic height probe and precise weight sensor
24 inches touch LCD screen
Intelligent face recognition camera(optional)
Human bio-electrical impedance 4 electrode handles(BIA)
Branded blood pressure and heart rate measuring device
Thermal printer with automatic paper cutting
1.24-inch hd LCD touch screen displays result, animation guide, advertising texts, videos and pictures,etc
2.It detects body composition including Fat, bone, water, TMB (Basal Metabolic Rate), Protein, Muscle,Intracellular and extracellular fluid, etc.
3.Branded Blood pressure measuring device supports left and right arm measurement in multiple postures such as standing or sitting and the device is removable
4.Accurate Measurement of height by ultrasonic technology (non-contact type)
5.500kg Weight precise sensors with environment adaptive automatic compensation
6. Automatic calculation of body mass index
7.Intelligent Face Recognition (optional)
8.Automatic voice broadcast of measurement results
9.Support Wifi/4G/5G//RS232/Bluetooth module data communication with PC, APP, server,HIS/LIS, bank and other system
Departments and units such as hospitals, pharmacies, clinics, schools, shopping malls/supermarkets, public security systems, gyms, medical centers and bathing centers etc.
SH-V10 | Technology parameter |
Height and weight | Height:20~210cm weight:2.0~500kg |
Measurement accurate | Height:(±0.1cm) weight:(±0.1kg) |
Blood pressure measurement |
Blood pressure: 0~299mmHg; Pulse:40~180pulse/min |
Fat and Basal metabolism | Fat:5.0- 75% Basal metabolism:385kcal- 5000kcal |
Body fat analysis | YES |
Health analysis | YES |
Dietary advice | YES |
Display | 24 inch LCD touch screen |
Power Supply Voltage | AC100V-240V,50Hz-60Hz |
Data Output Format | RS-232, Wifi, Bluetooth, 4G/5G,etc. |
Multi-nation language | YES |
Overall dimensions | 606*415*2340mm |
