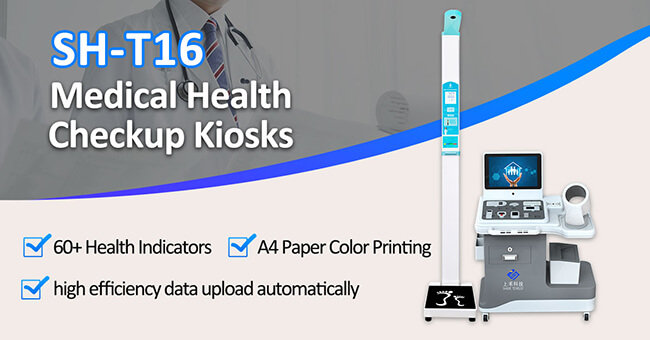

SH-T16 smart health management machine medical kiosk Can measure multiple indicators at the same time, convenient and fast, which includes height, weight, BMI, body fat analysis, muscle, blood pressure, pulse ,body temperature,blood lipids,blood sugar,blood oxygen,urine analysis,Cholesterol.
Identification: Face recognition, mobile phone number
Smart A4 paper color printing
User Friendly & Aesthetic Look
15.6 inch display screen can play ads
Date can be stored in the machine
By WiFi to transfer the date to Internet.
Advantage:
1.Laser A4 paper color printing
Low noise and silent, high-speed printing, support dual-band WiFi wireless, network port and USB direct connection and other printing methods.
2.Data interconnection
Support data cloud transmission, two-dimensional code data communication, data USB export, etc. (the device supports millions of storage).
3.smart system
Professional health system, high-definition touch screen (supporting multimedia advertisements such as pictures and videos), stable and reliable, intelligent guided measurement, accurate and efficient.
4.Intelligent Recognition
Support face recognition (support local database building, offline recognition, remote recognition, etc.), ID card, social security card, medical card, etc., accurate and efficient.
5.Function expansion.
As many as 20+ physical examination items, 90+ health indicators, and support customized expansion for different needs, accurate and efficient.
Departments and units such as hospitals, pharmacies, clinics, schools, shopping malls/supermarkets, public security systems, gyms, medical centers and bathing centers etc.
Model | SH-T16 smart health management machine |
HD touch screen |
15.6-inch high-definition touch screen, multimedia pictures and videos and other content promotion, intelligent display of results |
Intelligent Recognition |
Support smart face recognition, ID card, social security card, medical card, mobile phone number, input recognition, etc. (other methods can be customized) |
Height measurement |
Measuring range: 20-210cm Measurement accuracy: +0.5cm Division value: 0.5cm or 0.1cm adjustable |
Weight measurement |
Measuring range: 2.0-500kg Measurement accuracy: +0.1kg Graduation value: 0.1kg or 0.01kg adjustable |
Blood pressure measurement |
Using upper arm Panasonic sphygmomanometer Range: Blood pressure: 0-299mmHg (0-39.9kpa) Pulse: 40- 180times/min Measuring range: 5.0%-75% division value: 0.1% |
Fat measurement | Measuring range: 5.0%-75% division value: 0.1% |
Temperature measurement | Body temperature range: 34°C-43°C measurement error +0.2°C resolution: 0.1°C, measuring distance 1-5CM |
Blood oxygen test |
Measurement accuracy: in the range of 70% ~ 100%, measurement error is +2%, resolution: 1% |
Blood glucose test | Detection range: 20-600mg/dl (1.1-33.3Mmol/L) |
Urinalysis | 14 health indicators including white blood cells, glucose, calcium ions, microalbumin, PH, etc. |
Cholesterol test | Detection range: 100-400mg/dI (2059- 10.35mmol/L) |
Four tests of blood lipids | Total cholesterol, high density lipoprotein, triglycerides, low density lipoprotein |
ECG test | Standard 12-lead |
Hemoglobin test | Hemoglobin and red blood cell backlog |
TCM physical identification | Yang Deficiency Type, Yin Deficiency Type, Qi Deficiency Type, Phlegm-Dampness Type, Damp-heat Type, Blood Stasis Type, Special Type, Qi Stagnation Type, Peaceful Type |
Other projects |
The equipment supports up to 20+ physical examination items and 90+ health indicators, which can be flexibly selected according to needs (customizable expansion) |
Data transmission |
Support WiF/RJ45 network port, etc. to be transmitted to the Internet or LAN, at the same time support QR code communication, data export, etc. (customizable and docking data) |
A4 color report | Color laser printer, high efficiency and large capacity, standard A4 paper printing medical report |
